1次元のセルオートマトン (CA) は $x$ 方向だけに広がるセル(小さな正方形)に白か黒を置き、 ルールに従って次の世代の白黒を決めます。あるセル $c_i$ とその両隣のセル $c_{i-1}$ と $c_{i+1}$ がどうなっているかによって、次の世代の $c_i$ を決めるので、 ルールは256通り存在します。
ルールの番号を2進表示した8桁の並びがそれぞれ $c_{i-1} \ c_i \ c_{i+1}$ の組 $111 \ 110 \ 101 \ 100 \ 011 \ 010 \ 001 \ 000$ に対応した次の世代の $c_i$ を表します。 例えばルール0は、前の世代がどのような値でも次の世代は $0$ になり、 逆にルール255は、前の世代がどのような値でも次の世代は $1$ になります。 ルール50の場合は、2進表示が $00110010$ なので、前の世代が $101 \ 100 \ 001$ のときに $1$ になります。

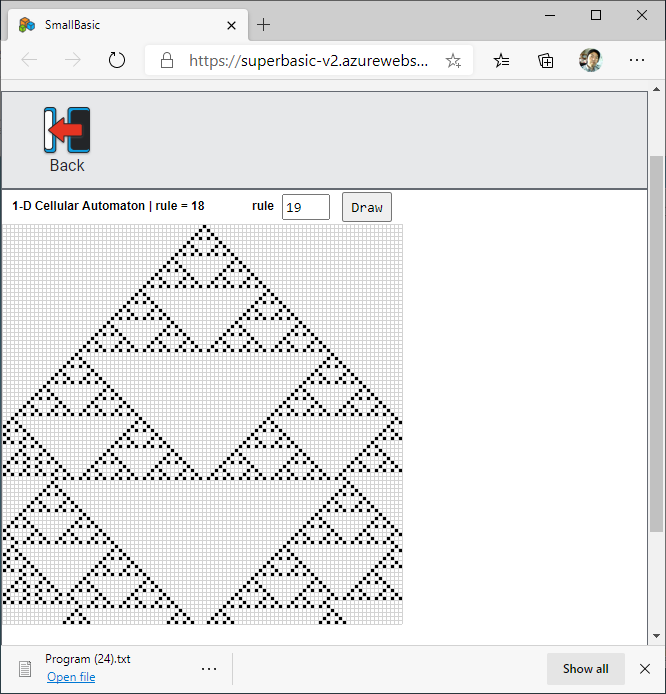

Small Basic オンラインで実行したスクリーンショットを以下に示します。 ここではルール18を採用しています。18はその2進表示が $000100010$ なので、 $100$ と $001$ のときだけ $1$ になるというルールです。 $0$ を白、$1$ を黒で表示しています。
一番上の行が世代0で、その次の行が世代1と、下に行くほど世代が新しくなります。 世代0は中央のセルのみ $1$ にしています。

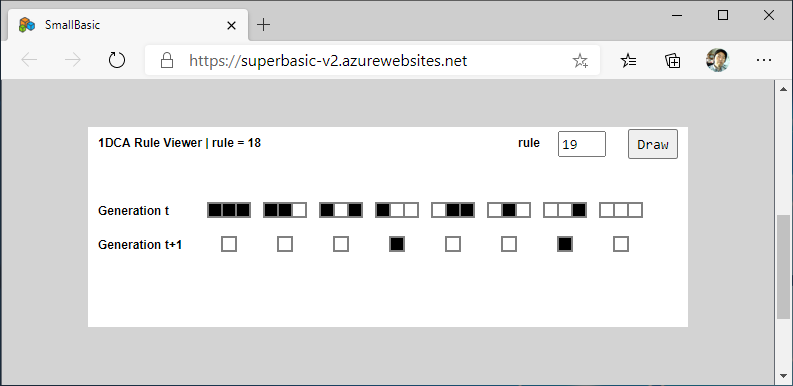

下図はルール18の内容を示したものです。世代 $t$ のセル $c_{i-1} \ c_i \ c_{i+1}$ とそのパターンに対する世代 $t+1$ のセル $c_i$ を表示しています。

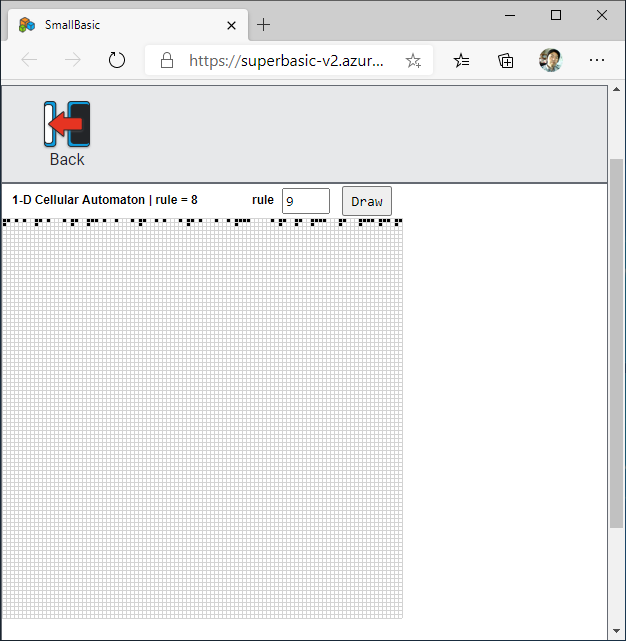

世代0の初期値をランダムに設定するとまた違った結果になります。下図はルール8の内容を示したものです。 結果が均一になり、クラス1の CA に分類されます。

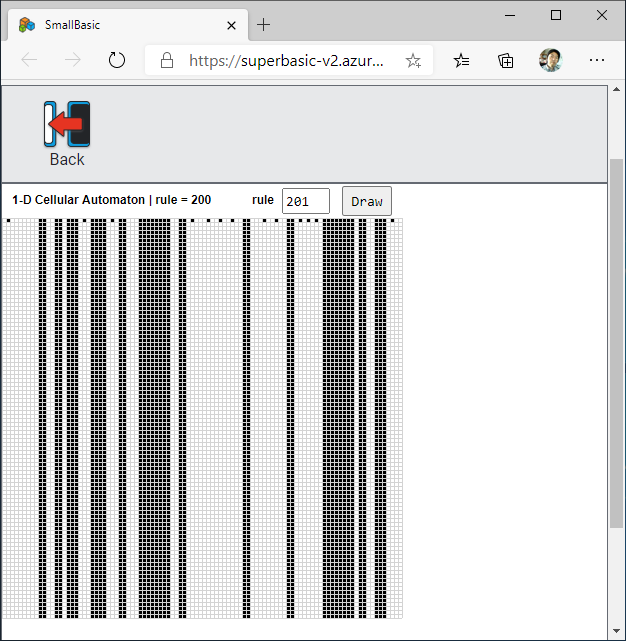

下図はルール200の内容を示したものです。 結果が周期的になり、クラス2の CA に分類されます。

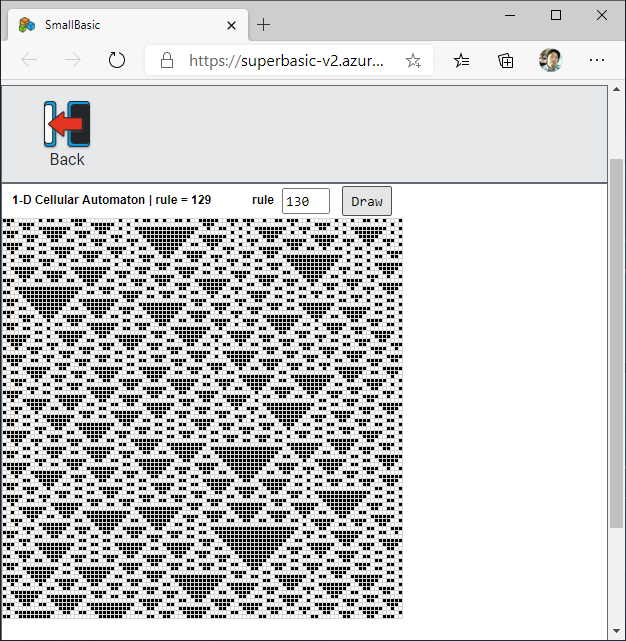

下図はルール129の内容を示したものです。 結果がカオス的になり、クラス3の CA に分類されます。
結果が複雑になるクラス4の CA もあるのですが、視覚的な判定が難しいので今回は省略します。
元のプログラム XMC184 は連続して全てのルールを表示するようにしていたのですが、 Small Basic オンラインの表示速度がとても遅いので、ルール番号を入力するようにしました。 ルール番号を入力して [Draw] ボタンを押すと、そのルールのセルオートマトンを表示します。
' 1-D Cellular Automaton ' Version 0.1.3 ' Copyright © 2020 Nonki Takahashi. The MIT License. ' Program ID XMC184-3 title = "1-D Cellular Automaton" random = "False" wait = 500 ' ms cellSize = 4 cols = 100 rows = 100 yOffset = 34 Init() Sub CA Shapes.SetText(shTitle, title + " | rule = " + rule) Clear() Gen0() DrawCells() For row = 1 To rows - 1 CalcNextCells() cell = next DrawCells() EndFor EndSub Sub CalcNextCells ' param cell[] - current generation ' param row - for next generation ' return next[] - next generation next = "" For col = 0 To cols - 1 c3 = 0 If cell[col - 1] Then c3 = c3 + 4 EndIf If cell[col] Then c3 = c3 + 2 EndIf If cell[col + 1] Then c3 = c3 + 1 EndIf If ruleset[rule][c3] = 1 Then next[col] = "True" EndIf EndFor EndSub Sub Clear GraphicsWindow.BrushColor = "White" GraphicsWindow.FillRectangle(0, yOffset, gw, gh) EndSub Sub DrawCells ' param row - generation to draw (0 origin) ' param cell[] - current generation GraphicsWindow.BrushColor = "Black" For col = 0 To cols - 1 If rows - 1 < row Then col = cols - 1 ' exit For to avoid over run ElseIf cell[col] Then x = col * cellSize y = row * cellSize GraphicsWindow.FillRectangle(x, y + yOffset, cellSize, cellSize) EndIf EndFor EndSub Sub DrawGrid ' param gw, gh - window size [px] ' param cellSize - cell size [px] GraphicsWindow.PenWidth = 0 GraphicsWindow.BrushColor = "LightGray" For x = 0 To gw Step cellSize line = Shapes.AddRectangle(1, gh) Shapes.Move(line, x, yOffset) EndFor For y = 0 To gh Step cellSize line = Shapes.AddRectangle(gw, 1) Shapes.Move(line, 0, y + yOffset) EndFor EndSub Sub Gen0 ' initialize generation 0 for top line row = 0 If random Then For col = 0 To cols - 1 If Math.GetRandomNumber(2) - 1 = 1 Then cell[col] = "True" Else cell[col] = "False" EndIf EndFor Else For col = 0 To cols - 1 If col = Math.Round(cols / 2) Then cell[col] = "True" Else cell[col] = "False" EndIf EndFor EndIf EndSub Sub Init gw = cols * cellSize gh = rows * cellSize GraphicsWindow.BrushColor = "Black" GraphicsWindow.FontName = "Arial" shTitle = Shapes.AddText(title) Shapes.Move(shTitle, 10, 8) GraphicsWindow.DrawText(250, 8, "rule") tbox = Controls.AddTextBox(280, 4) Controls.SetSize(tbox, 40, yOffset - 14) Controls.SetTextBoxText(tbox, 0) btn = Controls.AddButton("Draw", gw - 60, 2) Controls.SetSize(btn, 50, yOffset - 4) DrawGrid() ' initialize ruleset For i = 0 To 255 n = i p = "" For d = 0 To 7 p[d] = Math.Remainder(n, 2) n = Math.Floor(n / 2) EndFor ruleset[i] = p EndFor Controls.ButtonClicked = OnButtonClicked EndSub Sub OnButtonClicked rule = Controls.GetTextBoxText(tbox) _rule = rule + 1 If 255 < _rule Then _rule = 0 EndIf Controls.SetTextBoxText(tbox, _rule) CA() EndSub
ルールに対する世代 $t$ と世代 $t+1$ の関係を示すプログラムです。 ルール番号を入力して [Draw] ボタンを押すと、そのルールの関係を表示します。
' 1DCA Rule Viewer ' Version 0.1.0 ' Copyright © 2020 Nonki Takahashi. The MIT License. ' Last update 2020-09-19 title = "1DCA Rule Viewer" yOffset = 34 cellSize = 14 Init() Sub DrawCells _y = y + 2 * yOffset + 8 GraphicsWindow.PenColor = "Gray" For j = 0 To 7 n = 7 - j For i = 2 To 0 Step -1 If Math.Remainder(n, 2) = 1 Then GraphicsWindow.BrushColor = "Black" Else GraphicsWindow.BrushColor = "White" EndIf n = Math.Floor(n / 2) _x = x + 120 + j * cellSize * 4 + i * cellSize cell = Shapes.AddRectangle(cellSize, cellSize) Shapes.Move(cell, _x, _y) If i = 1 Then GraphicsWindow.BrushColor = "#00000000" cell = Shapes.AddRectangle(cellSize, cellSize) Shapes.Move(cell, _x, _y + yOffset) EndIf EndFor EndFor EndSub Sub Init gw = GraphicsWindow.Width gh = GraphicsWindow.Height fw = 600 fh = 200 GraphicsWindow.BackgroundColor = "LightGray" x = (gw - fw) / 2 y = (gh - fh) / 2 GraphicsWindow.BrushColor = "White" GraphicsWindow.FillRectangle(x, y, fw, fh) GraphicsWindow.BrushColor = "Black" GraphicsWindow.FontName = "Arial" shTitle = Shapes.AddText(title) Shapes.Move(shTitle, x + 10, y + 8) GraphicsWindow.DrawText(x + fw - 170, y + 8, "rule") tbox = Controls.AddTextBox(x + fw - 130, y + 4) Controls.SetSize(tbox, 40, yOffset - 14) Controls.SetTextBoxText(tbox, 0) btn = Controls.AddButton("Draw", x + fw - 60, y + 2) Controls.SetSize(btn, 50, yOffset - 4) GraphicsWindow.DrawText(x + 10, y + 2 * yOffset + 8, "Generation t") GraphicsWindow.DrawText(x + 10, y + 3 * yOffset + 8, "Generation t+1") DrawCells() Controls.ButtonClicked = OnButtonClicked EndSub Sub OnButtonClicked rule = Controls.GetTextBoxText(tbox) Shapes.SetText(shTitle, title + " | rule = " + rule) _rule = rule + 1 If 255 < _rule Then _rule = 0 EndIf Controls.SetTextBoxText(tbox, _rule) _y = y + 3 * yOffset + 8 For j = 7 To 0 Step -1 If Math.Remainder(rule, 2) = 1 Then GraphicsWindow.BrushColor = "Black" Else GraphicsWindow.BrushColor = "White" EndIf _x = x + 120 + (4 * j + 1) * cellSize GraphicsWindow.FillRectangle(_x, _y, cellSize, cellSize) rule = Math.Floor(rule / 2) EndFor EndSub
