前回使ったスーパー楕円をパラメーター $\theta$ で表した式、 $$\DeclareMathOperator{\sgn}{sgn} x = \sgn(\cos \theta) \; a \; \left| \cos \theta \right| ^{\frac{2}{n}} $$ $$ y = \sgn(\sin \theta ) \; b \; \left| \sin \theta \right| ^{\frac{2}{n}} $$ をそれぞれグラフにします。

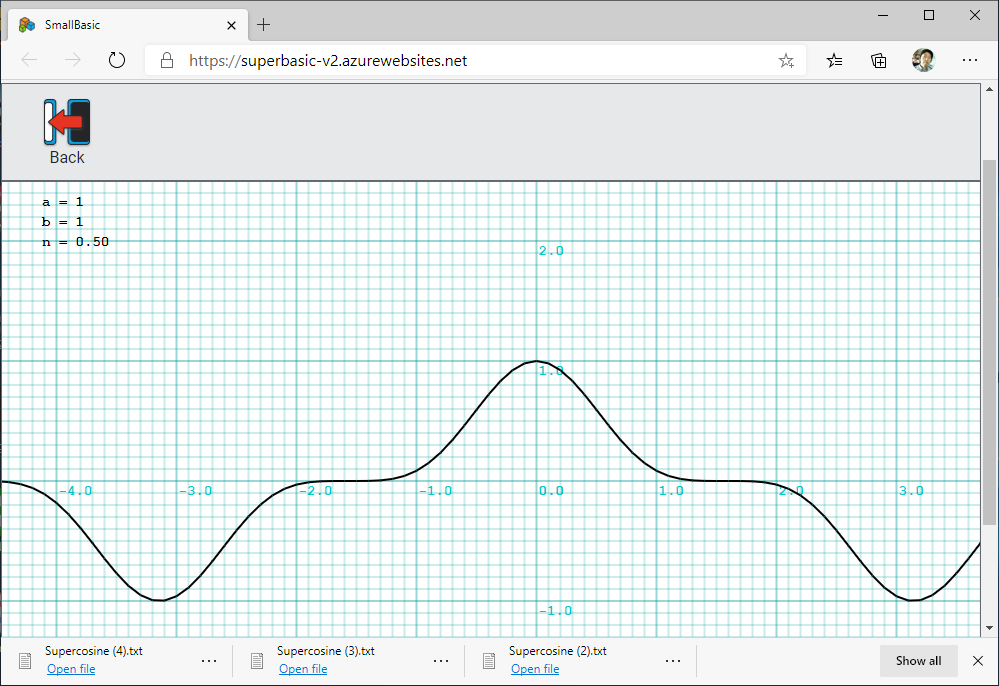

Small Basic オンラインで実行したスクリーンショットを以下に示します。 $a = 1$、$b = 1$ に固定しました。 まずは $x$ の式を仮にスーパーコサインと呼ぶことにします。グラフは横軸が $\theta$ で縦軸が $x$ です。 $n \lt 0.5$ のときは $\theta = -\pi / 2$ 付近の傾きが $0$ になり、 $n = 2$ のときは $\cos \theta$ と同じ傾き $1$、$n > 2$ で傾きが $1$ 以上になっていきます。

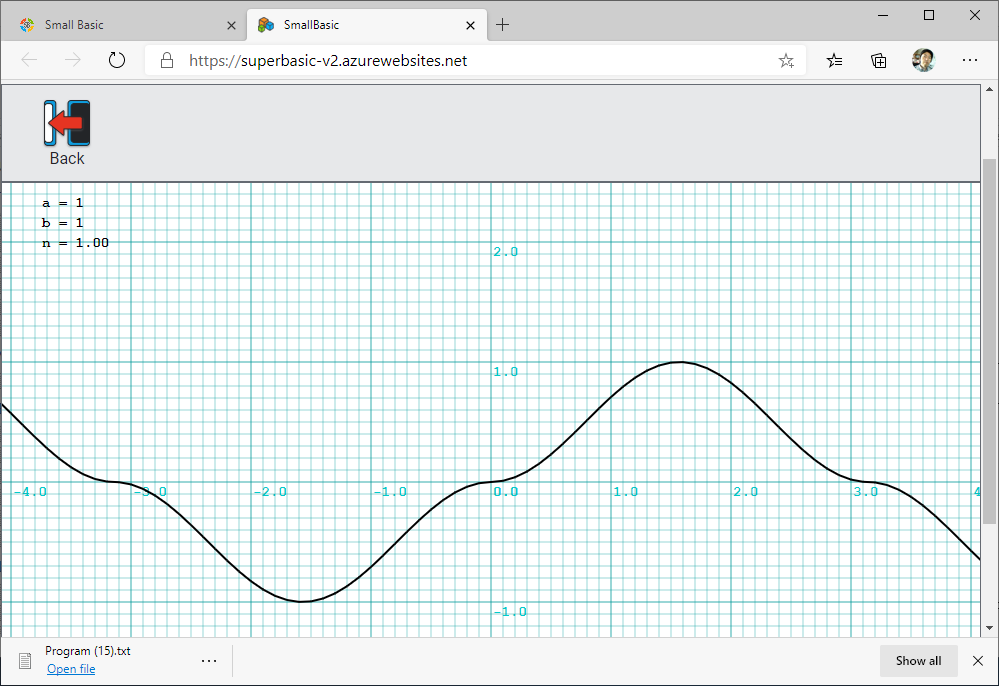

次に $y$ の式を仮にスーパーサインと呼ぶことにします。グラフの縦軸は $y$ になります。スーパーコサインと同様、 $n \lt 0.5$ のときは $\theta = 0$ 付近の傾きが $0$ になり、 $n = 2$ のときは $\cos \theta$ と同じ傾き $1$、$n > 2$ で傾きが $1$ 以上になっていきます。$\cos$ と $\sin$ の関係と同じように、 スーパーコサインとスーパーサインも $\theta$(位相)を $\pi / 2$ (90°)ずらした形になっています。
今回は座標系が $(x, y)$ ではなく、$(\theta, x)$ になっているので、変数名を それに合わせました。 $\theta$ の最小値と最大値を画面のちょっと外側に設定して計算しました。
' Supercosine ' Version 0.1.0 ' Copyright © 2020 Nonki Takahshi. The MIT License. ' Last update 2020-09-02 scale = 120 DrawGrid() a = 1 GraphicsWindow.BrushColor = "Black" GraphicsWindow.DrawText(40, 10, "a = " + a) b = 1 GraphicsWindow.DrawText(40, 30, "b = " + b) shN = Shapes.AddText("") Shapes.Move(shN, 40, 50) While "True" For n = 0.25 To 4 Step 0.25 Shapes.SetText(shN, "n = " + n) For i = 1 To nL Shapes.Remove(shL[i]) EndFor GraphicsWindow.PenWidth = 2 GraphicsWindow.PenColor = "Black" DrawSuperCos() keyDown = "False" Program.Delay(500) EndFor EndWhile Sub DrawSuperCos ' param gxo, gyo - center position in the graphics window ' param a, b - major and minor semi axis ' param n ' param scale nL = 0 shL = "" For θ = θ1 To θ2 Step dθ SuperCos() Map() gx2 = gx gy2 = gy If θ <> θ1 Then nL = nL + 1 shL[nL] = Shapes.AddLine(gx1, gy1, gx2, gy2) EndIf gx1 = gx2 gy1 = gy2 EndFor EndSub Sub DrawGrid gw = GraphicsWindow.Width gh = GraphicsWindow.Height gxo = gw / 2 gyo = gh / 2 fn = GraphicsWindow.FontName If (fn = "Tahoma") Or (fn = "Segoe UI") Then c10 = "#33009999" c100 = "#66009999" bc = "#00CCCC" Else ' for SBO c10 = "#00999933" c100 = "#00999966" bc = "#00CCCC" EndIf GraphicsWindow.FontName = "Courier New" GraphicsWindow.FontSize = 14 GraphicsWindow.BrushColor = bc dθ = 0.1 dx = -0.1 gx = Math.Remainder(gw / 2, dθ * scale) - dθ * scale gy = Math.Remainder(gh / 2, dx * scale) MapInv() θ1 = θ x1 = x gx = gw - Math.Remainder(gw / 2, dθ * scale) + dθ * scale gy = gh - Math.Remainder(gh / 2, dx * scale) MapInv() θ2 = θ x2 = x For θ = θ1 To θ2 Step dθ Map() rem = Math.Remainder(θ, 1) If rem = 0.0 Then GraphicsWindow.PenColor = c100 GraphicsWindow.DrawText(gx + 2, gh / 2, θ) Else GraphicsWindow.PenColor = c10 EndIf GraphicsWindow.DrawLine(gx, 0, gx, gh) EndFor For x = x1 To x2 Step dx Map() If Math.Remainder(x, 1) = 0.0 Then GraphicsWindow.PenColor = c100 If x <> 0 Then GraphicsWindow.DrawText(gw / 2 + 2, gy, x) EndIf Else GraphicsWindow.PenColor = c10 EndIf GraphicsWindow.DrawLine(0, gy, gw, gy) EndFor EndSub Sub Map gx = gxo + scale * θ gy = gyo - scale * x EndSub Sub MapInv θ = (gx - gxo) / scale x = -(gy - gyo) / scale EndSub Sub SuperCos abs = Math.Abs(Math.Cos(θ)) If abs = 0 Then sgn = 0 Else sgn = Math.Cos(θ) / abs EndIf x = sgn * a * Math.Power(abs, 2 / n) EndSub
上記の Supercosine.txt との違う部分をハイライト表示しました。5行変えただけです。
' Supersine ' Version 0.1.0 ' Copyright © 2020 Nonki Takahshi. The MIT License. ' Last update 2020-09-02 scale = 120 DrawGrid() a = 1 GraphicsWindow.BrushColor = "Black" GraphicsWindow.DrawText(40, 10, "a = " + a) b = 1 GraphicsWindow.DrawText(40, 30, "b = " + b) shN = Shapes.AddText("") Shapes.Move(shN, 40, 50) While "True" For n = 0.25 To 4 Step 0.25 Shapes.SetText(shN, "n = " + n) For i = 1 To nL Shapes.Remove(shL[i]) EndFor GraphicsWindow.PenWidth = 2 GraphicsWindow.PenColor = "Black" DrawSuperSin() keyDown = "False" Program.Delay(500) EndFor EndWhile Sub DrawSuperSin ' param gxo, gyo - center position in the graphics window ' param a, b - major and minor semi axis ' param n ' param scale nL = 0 shL = "" For θ = θ1 To θ2 Step dθ SuperSin() Map() gx2 = gx gy2 = gy If θ <> θ1 Then nL = nL + 1 shL[nL] = Shapes.AddLine(gx1, gy1, gx2, gy2) EndIf gx1 = gx2 gy1 = gy2 EndFor EndSub Sub DrawGrid gw = GraphicsWindow.Width gh = GraphicsWindow.Height gxo = gw / 2 gyo = gh / 2 fn = GraphicsWindow.FontName If (fn = "Tahoma") Or (fn = "Segoe UI") Then c10 = "#33009999" c100 = "#66009999" bc = "#00CCCC" Else ' for SBO c10 = "#00999933" c100 = "#00999966" bc = "#00CCCC" EndIf GraphicsWindow.FontName = "Courier New" GraphicsWindow.FontSize = 14 GraphicsWindow.BrushColor = bc dθ = 0.1 dx = -0.1 gx = Math.Remainder(gw / 2, dθ * scale) - dθ * scale gy = Math.Remainder(gh / 2, dx * scale) MapInv() θ1 = θ x1 = x gx = gw - Math.Remainder(gw / 2, dθ * scale) + dθ * scale gy = gh - Math.Remainder(gh / 2, dx * scale) MapInv() θ2 = θ x2 = x For θ = θ1 To θ2 Step dθ Map() rem = Math.Remainder(θ, 1) If rem = 0.0 Then GraphicsWindow.PenColor = c100 GraphicsWindow.DrawText(gx + 2, gh / 2, θ) Else GraphicsWindow.PenColor = c10 EndIf GraphicsWindow.DrawLine(gx, 0, gx, gh) EndFor For x = x1 To x2 Step dx Map() If Math.Remainder(x, 1) = 0.0 Then GraphicsWindow.PenColor = c100 If x <> 0 Then GraphicsWindow.DrawText(gw / 2 + 2, gy, x) EndIf Else GraphicsWindow.PenColor = c10 EndIf GraphicsWindow.DrawLine(0, gy, gw, gy) EndFor EndSub Sub Map gx = gxo + scale * θ gy = gyo - scale * x EndSub Sub MapInv θ = (gx - gxo) / scale x = -(gy - gyo) / scale EndSub Sub SuperSin abs = Math.Abs(Math.Sin(θ)) If abs = 0 Then sgn = 0 Else sgn = Math.Sin(θ) / abs EndIf x = sgn * b * Math.Power(abs, 2 / n) EndSub
